What is a 5 Axis CNC Maching?
In modern manufacturing, where tight tolerances, complex geometries, and fast turnaround times are essential, 5-axis CNC machining has become the gold standard. Compared to traditional 3-axis machining, 5-axis technology delivers superior flexibility, accuracy, and efficiency—making it indispensable in aerospace, medical device manufacturing, automotive engineering, and custom high-performance parts.
At T&B Manufacturing, we operate multiple 5-axis CNC machines every day. They allow us to prototype and produce advanced components with exceptional surface finishes, high spindle speeds, and fully optimized tool paths—all while maintaining micron-level precision.
What Is 5-Axis CNC Machining?
In conventional 3-axis machining, the cutting tool moves along the X, Y, and Z axes. While effective for basic parts, the machine cannot tilt or rotate the tool, making it difficult to reach deep pockets or complex angles without pausing, re-fixturing, or re-clamping. 5-axis CNC machining adds two additional rotational axes—typically the A-axis and either the B-axis or C-axis. This allows the cutting tool to approach the part from virtually any direction.
Key benefits of this added motion:
● Machine complex surfaces in a single setup
● Reach undercuts, deep cavities, and compound angles
● Reduce cycle time and tool wear
● Achieve superior surface quality with fewer interruptions
● Increase geometric accuracy and eliminate re-clamping errors
This technology is particularly effective in applications where tight tolerances, intricate shapes, and high-speed machining are required.
Advantages of 5-Axis CNC Machining
Whether in a machining center or high-precision workshop, the advantages of 5-axis machining are clear and industry-proven.
1. Fewer Setups, Higher Efficiency 5-axis CNC machines significantly reduce the number of workpiece repositioning steps. Complex geometries can often be completed in one continuous operation, lowering the chance of error and cutting total production time.
2. Superior Accuracy and Tolerance Control The added rotational axes allow the cutting tool to maintain the ideal angle throughout the machining process. This greatly enhances dimensional accuracy and reduces deviation, especially for:
● aerospace turbine housings
● titanium implants
● multi-face components
● precision housings and molds
3. High-Speed Cutting and Better Surface Finishes
Thanks to optimized tool paths, the spindle can maintain higher speeds and consistent cutting forces. This results in:
● smoother surfaces
● minimal vibration
● reduced polishing or secondary finishing
4. Optimized for Complex Geometries
Curved surfaces, free-form shapes, undercuts, and multi-sided structures are easily achieved through dynamic movement—capabilities that 3-axis machines cannot match.
Applications of 5-Axis CNC Machining
5-axis machining is widely used in industries where complexity, durability, and precision are non-negotiable.
Aerospace Components Aerospace engineers rely heavily on 5-axis machining for parts such as:
● turbine blades
● compressor components
● structural aerospace brackets
● flight control parts
● complex internal channels
The ability to reach tight pockets and compound angles without re-fixturing is essential for both performance and safety.

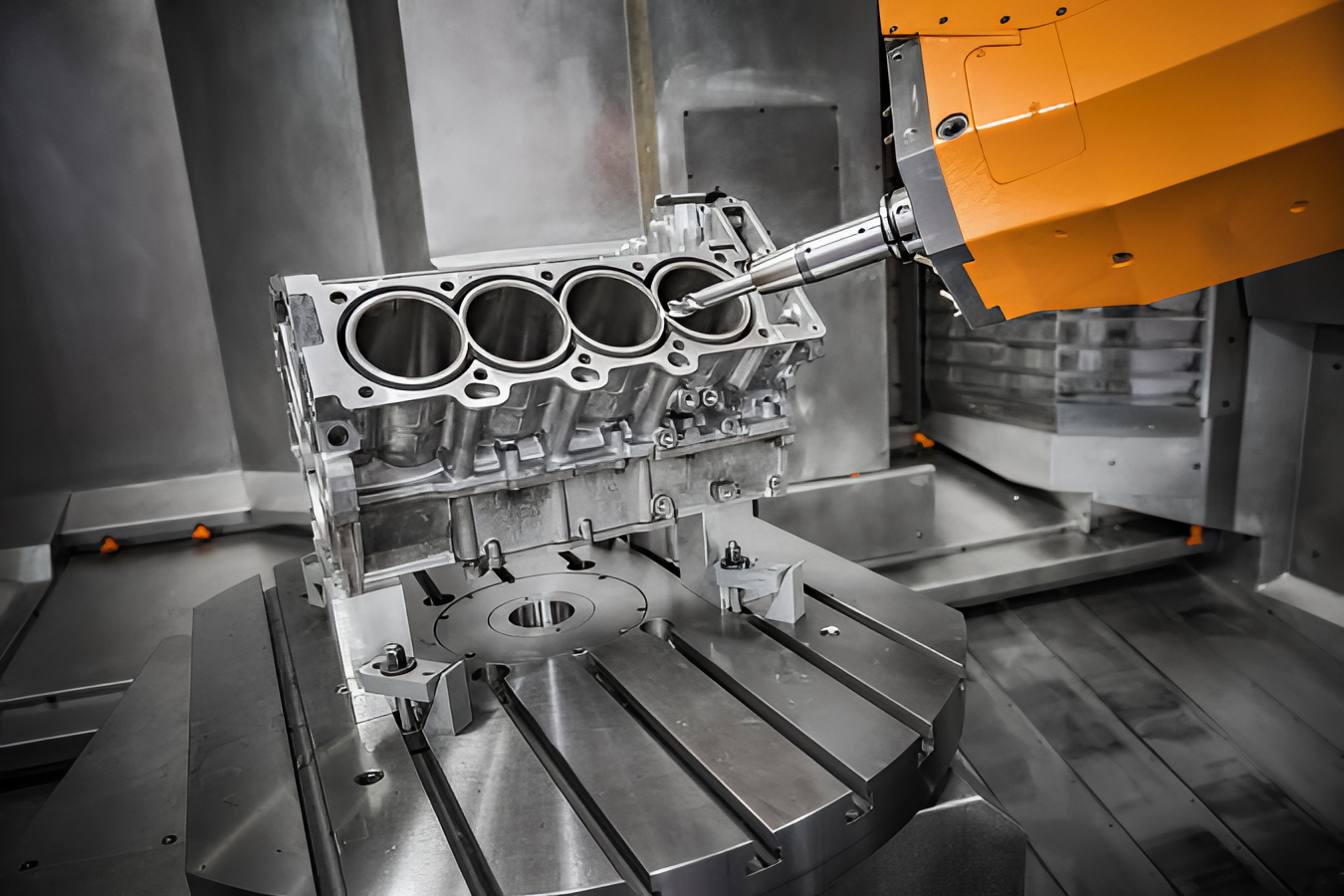

Automotive Manufacturing
High-performance and lightweight automotive components benefit greatly from 5-axis milling:
● engine blocks
● suspension parts
● injection molds
● custom racing components
High-speed machining ensures consistent accuracy and superior finishes.
Medical and Healthcare Devices
Medical device manufacturers depend on 5-axis machining for:
● orthopedic implants
● surgical instruments
● prosthetics
● dental components
● electronic housings for medical sensors
Materials such as titanium, stainless steel, and cobalt-chrome require precision and biocompatible surface integrity that only 5-axis technology can consistently achieve.
Mold Making, Marine, and Electromechanical Components
Industries that require deep cavities, accurate contours, or corrosion-resistant shapes also rely on multi-axis machining for optimal performance.
Accuracy & Intricate 5-Axis Milling Capability
When extreme precision matters, 5-axis milling surpasses traditional machining methods.
By integrating a C-axis or B-axis rotation, the machine can cut from multiple directions without interrupting the process. This results in:
● improved geometric accuracy
● less vibration
● clean, consistent surface profiles
● shorter cycle times
● improved performance on titanium, Inconel, and hardened steel
For industries such as aerospace, medical technology, automotive engineering, and advanced electronics, this level of accuracy isn’t optional—it’s essential.
T&B Manufacturing — Your Partner for Precision 5-Axis CNC Machining
At T&B Manufacturing, we specialize in advanced 5-axis CNC machining, multi-axis milling, and precision engineering services for global industries. With state-of-the-art machining centers, high-speed spindles, and expert engineering teams, we deliver tight-tolerance components with superior finishes and reliable repeatability.
Our capabilities include:
● 5-axis CNC machining for complex geometries
● High-precision prototyping & custom part manufacturing
● Machining of titanium, stainless steel, aluminum, copper, Inconel & more
● OEM/ODM support for aerospace, medical, automotive & industrial applications
Whether you need rapid prototypes, low-volume production, or high-precision complex parts, T&B ensures accuracy, efficiency, and consistent quality—every time.
If you’re looking for a trusted partner for 5-axis CNC machining, T&B is ready to support your project from design to final assembly.
